Indocyanine green fluorescence angiography during liver and pancreas transplantation: a tool to integrate perfusion statement’s evaluation

Introduction

Indocyanine green (ICG) fluorescence is a useful real time imaging technique developed during the last few years to improve surgeon performance and, consequently, patient safety. ICG dye is a molecule with a mass of 776 Daltons, approved for clinical use in 1959 by the Food and Drugs Administration (1,2). Following intravenous injection, ICG first binds the albumin. Quickly after, it is removed from the blood and uptake by the hepatic cells. Without any modifications the dye is nearly exclusively excreted into bile, in about 8 min of time frames from the injection, depending on the liver vascularisation and function (1-3). ICG dye becomes fluorescent once excited either using a near-infrared (NIR) light. Specifically, designated scopes can visualize the fluorescence emitted. The standard clinical dose (0.1–0.5 mg/mL/kg) is safe and well below the toxic level.

The dye that can be injected intravenous with practically no adverse effects (1), has been used in medicine since the late 50s to assess liver function before major liver resections in cirrhotic patients (4). The Japanese first described the applicability of the fluorescence in the diagnosis of hepatic tumours as hepatocellular carcinoma and, afterwards, the identifiable patterns of fluorescence that result from differentiation-dependant hepatocyte dysfunction. Moreover, fluorescence has been extensively employed in the gynaecologic, endocrine and colorectal surgeries (1,5). Fluorescence, in fact, can provide detailed anatomical and functional information during surgery (1,5,6). The applicability and the possible advantages using ICG fluorescence during organ transplantation is limited and not well assessed. Herein, we present our initial experience of ICG-enhanced fluorescence applied during liver and pancreas transplants.

Methods

The study was approved by the institutional review board of the Montpellier University Hospital (No. 00115/2016) and informed consent was obtained from all patients.

We applied the ICG fluorescence for evaluating perfusion level during 6 livers and 5 pancreas transplantation procedures performed at Montpellier University Hospital (St. Eloi Hospital) between January and April 2016.

Fluorescence was identified using a full high definition camera system (VITOM^®, KARL STORZ GmhH & Co. KG, Tuttlingen, Germany), connected to a 10-mm scope with 0° field, equipped with a specific filter for NIR fluorescence detection. The surgeon controls the switching from white light to NIR using a pedal. Visualization, moreover, is improved by a system of professional image enhancement (IMAGE1 S^TM system, KARL STORZ GmhH & Co. KG, Tuttlingen, Germany), which offers adjustable visualization modalities selected according to surgeon’s preferences.

This camera is specifically developed for open surgery procedures and it is fixed with a flexible arm to the operating room table between the first surgeon and the assistant. The surgeon is able to modify the camera position during the entire procedure and the position of the camera does not interfere with the surgeon work.

Primary end-points of the study

• Liver transplantation: the aim is to assess the graft bile duct perfusion in order to identify the appropriate area of duct transection before performing the anastomosis;
• Pancreas transplantation: to evaluate the perfusion level of the duodenal graft stump in order to identify some perfusion defect that could be transected before the anastomosis.

ICG fluorescence applied in liver transplantation

Once performed standard procedures for liver transplantation and provided the revascularization of the organ, we injected intravenously 0.5 mg/kg of ICG dye. After just 47 seconds, the perfusion level between the proximal vascularized part (fluorescent) and the distal non-vascularized part (non-fluorescent) of the graft bile duct was clearly recognized (Figures 1,2). At this precise level, we performed an end-to-end bile duct anastomosis with two running sutures of PDS 5/0. An IGC fluorescent angiography was re-performed after the anastomosis to evaluate the vascularization.

Figure 1 Intraoperative ICG fluorescence assessment of the graft bile duct perfusion during liver transplantation (7). ICG, indocyanine green. Available online: http://www.asvide.com/article/view/25317

Figure 2 Intraoperative ICG evaluation of graft bile duct perfusion. The proximal fluorescent part is vascularized while the distal one is non-vascularized (non fluorescent), guiding the level of transection. BDf, bile duct fluorescent; BDnf, bile duct not fluorescent; ICG, indocyanine green.

ICG fluorescence applied in pancreatic transplantation

After performing the vascular anastomoses and subsequently provide the reperfusion of the pancreatic parenchyma, we intravenously injected 0.5 mg/kg of ICG dye to evaluate enteric diversion. After a time lapse of 35 seconds from the injection, we observed the arterial vascularisation of the graft duodenal stump, particularly at the level of the lateral portions previously resected using a linear stapler (Figures 3,4). We could evaluate, furthermore, the vascularization of the head of the pancreas and the site of the anastomoses between the graft duodenal stump and the recipient terminal ileum. We normally perform a side-to-side entero-enteric anastomosis with two running sutures of PDS 4/0. The patient receives a therapeutic dose of intravenous heparin for the first week after transplantation.

Figure 3 Intraoperative ICG fluorescence assessment of the perfusion of the intestinal anastomosis during pancreas transplantation (8). ICG, indocyanine green. Available online: http://www.asvide.com/article/view/25319

Figure 4 Intraoperative evaluation of arterial perfusion of the graft duodenal stump provided by ICG fluorescence. ICG, indocyanine green.

Results

Liver transplants

In two patients out of six we changed the intraoperative strategy performing a new graft bile duct resection before performing the anastomosis. In these two patients, we inserted a trans-anastomotic T-tube. The fluorescence procedure prolonged the operative time of about 10 minutes. No adverse events occurred in the perioperative and postoperative periods.

Follow-up period for the six patients having undergone liver transplantation was 12 months. All these patients have been regularly evaluated. The postoperative period was uneventful, liver function tests [(alanine transaminase (ALT), aspartate aminotransferase (AST), prothrombin time (PT), international normalized ratio (INR), total bilirubin)] were normalized and, above all, no biliary complications as leaks or stenosis were reported (Table 1).

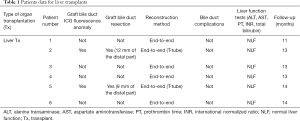

Table 1 Patients data for liver transplants
Full table

Pancreas transplants

A duodenal stump resection was re-performed due to ischemia in a single case. Furthermore, in this case the reconstruction was performed by a duodenal-jejunum Roux en Y anastomosis. In the others cases a side-to-side duodenal-ileal anastomosis were performed. The fluorescence procedure prolonged the operative time of almost 8 minutes. No adverse events occurred in the perioperative period.

We employed ICG fluorescence to evaluate enteric diversion in the pancreatic-renal transplantation in others four patients without experiencing complications.

The five patients who have undergone the combined kidney-pancreas transplantation were alive and fine at 12 months of follow-up. One of five patients was re-operated at the 10^th postoperative day for drainage of an intra-abdominal infected hematoma causing fever and abdominal pain. No complications of the duodenal-enteric anastomosis or the graft duodenal stump occurred.

At the evaluation after one year from surgery, the mean serum creatinine was 1.35 mg/dL (1.2–1.5 mg/dL), while glycaemia was in the normal range, the mean serum C-peptide was 1.9 ng/mL (range, 0.62–3.01 ng/mL) without exogenous insulin administration (Table 2).

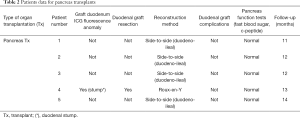

Table 2 Patients data for pancreas transplants
Full table

Discussion

Bowel and biliary anastomoses have historically been, respectively, the Achilles heel of pancreas and liver transplantation. In our experience during the last 5 years we reported about 7.5% of bile duct leaks and 22.5% of bile duct stenosis in case of liver transplantation, and about 10% of duodenal graft leaks in case of pancreas transplantation. Improvements in the surgical technique and donor management have mitigated many of these issues. Despite this, still a considerable amount of postoperative complications are attributable to various causes, particularly, to an ischemic damage.

As the application of ICG fluorescence angiography could probably add important real time information on territories of vascularization, influencing the intraoperative decision-making, we employed it during open organ transplantation procedures.

The purpose of testing this emerging imaging technique is to identify a method of increased sensibility compared to personal experience and the standard intraoperative Doppler ultrasound, that can help improving surgeon performance and, consequently, patient safety (1,3,5,9).

Hopefully therefore ICG introduction might lead to a reduction of post-operative complication’s rate attributable to ischemia.

The ICG dye was already applied in solid organ transplantation. In the University of Illinois surgeons used ICG dye to demonstrate a good graft revascularization during pancreas transplantation (10). Furthermore, Japanese tested ICG dye to evaluate the portal reperfusion in a case of living donor liver transplantation (11,12). Moreover, the application of ICG fluorescence is currently under-evaluation to predict the short-terms outcomes after liver transplantation (13-15).

However, one of the most feared complications after liver transplantation concerns the bile duct vascularization and the biliary anastomoses (16,17).

Biliary complications occur approximately in 10–20% of the patients who have undergone liver transplantation and are responsible of graft loss and increased mortality (16,17).

Causes of biliary complications are various as graft/recipient anatomical, surgical or immunological issues (16-19). Correct organ procurement and bile duct dissection play a key-role to avoid complications reported as well (18).

Up to now, the graft bile duct vascularization is extremely difficult to estimate and only the surgeon’s intraoperative evaluation (observing brisk bleeding from the proximal stump) and experience are currently employed (20).

The emerging technique of the ICG fluorescence may fill up this gap, giving an objective real time visualization of the bile duct microvascular perfusion without considerably lengthening the operation time.

In the same manner, pancreas transplantation procedure could be affected by severe complications causing graft loss and severely increased mortality as the digestive leak, in case of enteric diversion (21). The main cause of this severe complication is a defective duodenal graft vascularization (21,22). In fact, the duodenal stump vascularization is far from being optimal due to gastroduodenal artery ligation during the organ procurement (22).

The interest of an objective, quantifiable, real time information on vascularization of the duodenal stump as provided by IGC fluorescence is, in this contest, extremely high to the intraoperative decision-making.

In conclusion, the ICG fluorescence seems to safely provide important objectifiable perfusion information during organ transplantation procedures that can integrate surgeon’s expertise. In fact, detecting intra-operatively perfusion defects, it allows real time modifications on technical strategies potentially useful to reduce the feared risk of anastomotic leakage and consequent severe complications.
