Circulating osteopontin per tumor volume as a prognostic biomarker for resectable intrahepatic cholangiocarcinoma

Introduction

Intrahepatic cholangiocarcinoma (ICC) is a subtype of cholangiocarcinoma, accounting for approximately 10% of the total reported cases (1). ICC can arise from biliary epithelium in any portion of the intrahepatic biliary system, from ductules to segmental bile ducts proximal to the bifurcation of the hepatic ducts (2). Over the last few decades, the incidence of ICC worldwide has been increasing (3,4), leading to a concomitant rise in the mortality rate (5,6). The 1- and 2-year survival rates following diagnosis are only 24.5% and 12.8% respectively (7) and resection remains the primary effective first-line treatment for ICC; median survival time can reach above 30 months (8,9) when the tumor is completely removed. Even so, quite a number of patients experience recurrence or died shortly after the aggressive resection. It still remains unclear how to select the patients who would optimally benefit from surgery. Invasive and metastatic characteristics of ICC are usually considered as risk factors for recurrence and long-term survival (10-15). However, the confirmation of these characteristics relies on pathological examination. Therefore, a suitable preoperative testing method is in need to judge the invasive and metastatic ability of ICC and assess the survival benefit of resection, so as to help develop a treatment strategy.

Osteopontin (OPN) is a glycosylated phosphoprotein encoded by the gene SPP1 (secreted phosphoprotein 1). It can be found in a variety of cells, tissues and body fluids. It is involved in diverse biological processes such as biomineralization, bone remodeling, immune function, chemotaxis, cell survival, and tumorigenesis via receptors involving integrin and CD44. A large number of human tumor types express OPN, including hepatocellular carcinoma (HCC) and ICC, both of which are primary liver cancers. The relationship between OPN and HCC has drawn researchers’ attention and has been studied intensively. It is believed that OPN promotes the progression of HCC in different ways, such as apoptosis inhibition (16), extracellular matrix (ECM) degeneration (17), stemness enhancement (18), epithelial-mesenchymal transition (EMT) (19,20) and migration (21). With regards to ICC, whether OPN is able to provide early detection of invasive, and metastatic behavior remains unclear. The studies on the role of OPN in ICC are limited and controversial. Terashi et al. (22) and Iguchi et al. (23) reported that decreased expression of OPN in the tissue was considered to be an indicator for aggressive phenotype and shorter survival; whereas Zheng et al. (24) found that elevated OPN in the serum was associated with poor prognosis after resection.

Therefore, this study aims to investigate the clinical value of OPN in predicting prognosis and developing treatment strategy and explore the possible mechanisms of the function of OPN.

Methods

Patients and specimens

All patients enrolled in this study had no history of malignant tumor or anti-tumor treatment, had undergone curative resection with a clear surgical margin, and had a pathological diagnosis of ICC. Archival specimens from 2005 to 2016 were obtained from patients at Zhongshan Hospital, Fudan University after informed consent. Eighty-five cases of frozen tissue, 228 cases of formalin-fixed and paraffin-embedded (FFPE) tissue, and 124 cases of preoperative serum were selected based on complete clinicopathological and survival data for the patients. Forty-one patients had frozen tissue and serum at the same time. This study was approved by the ethics committee at Zhongshan Hospital.

Reverse transcription and quantitative polymerase chain reaction

RNA was extracted by TRIzol (Invitrogen), followed by reverse transcription with a High Capacity cDNA Reverse Transcription Kit (Applied Biosystems). qPCR and PCR array (Human Tumor Metastasis Array Plates, Taqman) were conducted using 7900HT Fast Real-Time PCR (Applied Biosystems). The primers used in qPCR were synthesized according to the following sequence listed in PrimerBank (25): GAPDH (378404907c1), SPP1 (352962175c1), CXCR4 (56790928c1), MMP1 (225543092c1), MMP10 (296080749c1). Gene expression was calculated by the 2^–∆∆Ct algorithm normalized to GAPDH.

Evaluation of serum markers

Frozen serums derived from ICC patients and healthy subjects were used for the double-blinded quantitative detection of certain markers. Concentrations of OPN were calculated using a Human osteopontin/OPN ELISA Kit (Multi Science, China) according to the manufacturer’s protocol. Each sample was tested in triplicate. Expression of CEA and CA19-9 was determined by Cobas E602 (R&D) at the Department of Laboratory Medicine in Zhongshan Hospital.

Calculation of tumor volume

Tumor volume measurement was performed by a radiologist if patients’ preoperative CT was accessible (26). Otherwise, tumor volume was calculated using the formula (4/3× π × length × width × height), according to the surgery record (27). Total tumor volume was the sum of the volumes of total lesions in one patient. Serum OPN/volume was defined as the ratio of serum OPN to total tumor volume (28).

Immunohistochemistry analysis

FFPE blocks were used to construct tissue microarrays (TMA), as described previously (29). Duplicates of cylinders away from the necrotic and hemorrhagic area in the tumor were included in each case to ensure reproducibility (Shanghai Biochip Co., Ltd., Shanghai, China). TMA slides were incubated with polyclonal OPN antibody (22952-1-AP, Proteintech, China) at a 1:200 dilution. The staining pattern was semi-quantitatively evaluated by two pathologists (LL Chen, and M Du). IHC results of OPN were described by the sum of intensity score (negative =0, weak =1, moderate =2 and strong =3, Figure 1A,B,C,D) and percentage score (0%=0, 0–30%=1, 30–60%=2, 60–100%=3) (30). A score of 0–2 was classified as low expression, a score of 3–5 was classified as medium expression, and a score of 6 was classified as high expression.

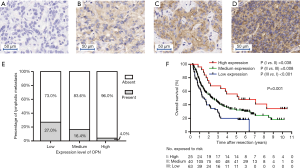

Figure 1 The association of OPN in tumor tissue with prognosis. (A,B,C,D) Immunohistochemical staining of OPN in ICC tissues. According to the intensity and extent of staining, expression levels of OPN were grouped into negative (A), weak (B), medium (C), and strong (D); (E) the incidence of lymph node metastasis decreased as the expression level of OPN increased (P=0.009, Jonckheere-Terpstra analysis); (F) survival analysis. The expression level of OPN was significantly associated with overall survival (n=228, P=0.001, log-rank statistics). OPN, osteopontin; ICC, intrahepatic cholangiocarcinoma.

Cell culture and transfection

Six cell lines were adopted in this study, including four human ICC cell lines (RBE, CCLPI, HCCC9810 and HuCCT1), one human hepatocyte cell line (ChangLiver) and one human intrahepatic bile duct cell line (HIBEpic). Chang Liver was preserved at the Liver Cancer Institute, Fudan University. CCLPI and HuCCT1 were provided by Dr. Wang from the Institutes of Biomedical Sciences of Fudan University. RBE and HCCC9810 were provided by the Shanghai Cell Bank, Chinese Academy of Sciences. HIBEpic was purchased from ScienCell Research Laboratories (Carlsbad, CA, USA). Cells were maintained in RPMI-1640 culture medium (GIBCO) supplemented with 10% FBS (GIBCO), 100 IU/mL penicillin, and 100 mg/mL streptomycin (GIBCO). Full-length OPN and cDNAs were cloned into lentiviral vectors pCDH-CMV-MCS-EF1. These vectors, together with the empty vectors, were used to transfect both HCCC9810 and HuCCT1. Lentiviral vectors containing SPP1 shRNA or non-target shRNA control were constructed using GenePharma (GenePharma, Shanghai, China). These vectors were used to transfect HCCC9810 and RBE.

Proliferation and migration assay

Cellular function assays, which are proliferation and migration assays, were measured using an automated time-lapse phase-contrast microscope system named Cell-IQ (Chip-Man Technologies, Finland) (28). This system provides a stable atmosphere (5% CO₂, 20% O₂, and 75% NO₂) and temperature of 37 °C. The monitoring of cellular proliferation started after seeding the 24-well plate (Corning) at the density of 3,000 cells per well for 12 h. The monitoring of cellular migration began immediately after making a cross-directional scratch to the confluent cell layer at the 24-well plate with a pipette tip. The images were taken every full hour for 36 h. Cell number was estimated from images by Cell-IQ Analyser (version 2.2.1, Chip-Man Technologies) software. The velocity of migration was presented as the ratio of the cleaned area by ImageJ software (ImageJ 1.50 s, Wayne Rasband, National Institutes of Health, USA).

Transwell invasion assay

Cellular invasion ability was evaluated by Matrigel Transwell assays. Each Transwell insert was coated with Matrigel (BD) diluted in medium (1:8, 80 µL). Then, 1×10⁵ cells were plated into the Transwell inserts with RPMI-1640 medium. Next, 600 µL medium containing 10% fetal bovine serum (FBS) was injected into the lower chamber. Invaded cells were fixed and dyed after incubating for 48 h. Cell numbers were counted as the average number in five random high magnification fields. Assays were performed in triplicate.

Statistical methods

Student’s t-test or Mann-Whitney test was used to determine the differences between the two groups. Kaplan-Meier analysis was used to measure overall survival (OS) and disease-free survival (DFS). OS was the duration time of the interval from resection to death or latest follow-up. DFS was the duration time of the interval from resection to recurrence of ICC or death or last follow-up. Early recurrence was defined as recurrence occurring within 2 years after resection (31). Variables associated with OS were identified using Cox proportional hazards regression model. Prognostic factors verified in the univariate analysis were further subjected to multivariate Cox regression analysis in an enter method. One-way ANVOA or Kruskal-Wallis test was performed to determine certain clinicopathological data associated with OPN expression. Jonckheere-Terpstra was then undertaken to detect whether there was a priori ordering of the clinicopathological factor along with the enhancement of OPN expression. A 2-tailed P<0.05 was considered significant. Statistical analyses and graphs were generated using GraphPad Prism (version 5.01, GraphPad Software), SPSS (version 19.0, IBM), MedCalc (version 10.4.7.0, MedCalc Software) and X-tile (version 3.5.0, Yale University).

Results

Prognosis value of OPN in tumor tissue

TMAs comprising 228 cases were evaluated for the clinical value and the expression level of OPN in tumor tissue. Patients were divided into OPN low, medium, and high expression groups according to their IHC score. There were 63, 140, and 25 cases in these groups respectively.

The association with tissue OPN and clinicopathological characteristics was compared. It was found that lymph node metastasis (P=0.031) and Edmondson’s grade (P=0.011) were significantly different among OPN expression subgroups (Table S1). Jonckheere-Terpstra analysis revealed that the incidence of lymph node metastasis decreased as the expression level of OPN increased (P=0.009, Figure 1E), while Edmondson’s grade did not have an ordering with the change of OPN.

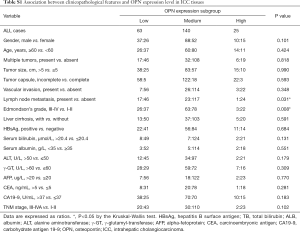

Table S1 Association between clinicopathological features and OPN expression level in ICC tissues
Full table

Remarkably, patients with a higher OPN expression level had better OS than patients in the median and low expression groups. The median survival of high, medium and low expression groups were 63.0, 28.7, and 16.5 months respectively (P=0.001, Figure 1F). Univariate analysis showed that multiple tumors, largest diameter, lymph node metastasis, CA19-9, and OPN were significantly correlated with OS. All five these clinicopathological characteristics were then tested in Cox’s multivariate proportional hazards model. The results indicated that multiple tumors, largest diameter, lymph node metastasis, and low level of OPN expression were independent risk factors for OS (Table S2).

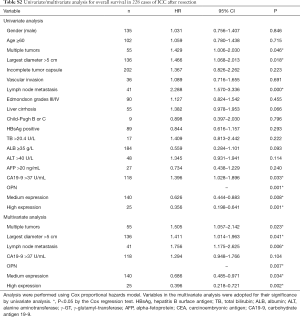

Table S2 Univariate/multivariate analysis for overall survival in 228 cases of ICC after resection
Full table

The relationship between serum OPN level and OPN in tumor tissue

We noticed that it was preoperative serum OPN (n=124, P<0.001, r=0.353, Figure 2A), rather than SPP1-mRNA (n=85, P=0.023, r=−0.247, Figure 2B) or OPN (n=228, P=0.960, Figure 2C) in tissue, that positively correlated with tumor volume. Considering that the larger ICC was the more serum OPN, there would be, the size of the ICC might cover up the intrinsic effect of serum OPN. Therefore, we adjusted the serum OPN by tumor size, which was accomplished by dividing the OPN concentration by total tumor volume (OPN/volume) (27,28).

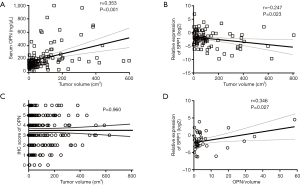

Figure 2 Relationship between OPN level and tumor volume. (A) Correlation between serum OPN and tumor volume (n=124, r=0.353, P<0.001); (B) correlation between tissue SPP1-mRNA and tumor volume (n=85, r=−0.247, P=0.023); (C) correlation between tissue OPN and tumor volume (n=228, P=0.960); (D) correlation between circulating OPN/volume and local SPP1-mRNA (n=41, r=0.346, P=0.027). OPN, osteopontin.

In 41 patients, frozen tissue and serum specimen were accessible at the same time. Before the adjustment of tumor size, SPP1-mRNA in the tissue was not correlated with serum OPN (n=41, P=0.737, Figure S1A). After the adjustment, patients with less SPP1-mRNA in the tissue had a lower level of circulating OPN/volume (n=41, P=0.043, Figure S1B), and circulating OPN/volume was positively correlated with local SPP1-mRNA (n=41, P=0.027, r=0.346, Figure 2D).

Figure S1 Comparative analysis of OPN in frozen tissue and paired serum specimen (n=41). (A) The correlation between serum OPN and SPP1-mRNA in the tissue (r=−0.054, P=0.737); (B) comparison between circulating OPN/volume and SPP1-mRNA in the tissue (P=0.043). OPN, osteopontin.

The association of circulating OPN/volume with clinicopathological characteristics and prognosis

The median circulating OPN/volume was 2.9 ng/mL/cm³ (quartiles 1.4–6.6), and the mean ratio was 9.6±26.3 ng/mL/cm³. A total of 124 patients were then separated into two groups using the median ratio as the cutoff point. The high level group’s (n=62) ratio was no less than 2.9 ng/mL/cm³, and the low level group’s (n=62) concentration was lower than 2.9 ng/mL/cm³.

A low level of circulating OPN/volume was significantly associated with abnormal CEA (P=0.005), advanced Tumor, Nodes, Metastasis (TNM) stage (P<0.001), lymph node metastasis (P=0.002), along with invasive behavior (32) determined by multiple tumors (P<0.001), vascular invasion (P=0.027), and visceral peritoneal perforation (P=0.001) (Table 1).

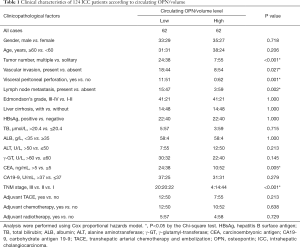

Table 1 Clinical characteristics of 124 ICC patients according to circulating OPN/volume
Full table

Median follow-up time was 31.4 months. The 1- and 3-year cumulative proportions were 81.9% and 53.9% respectively, for OS, and 59.3% and 29.3%, respectively, for DFS. Patients in the low OPN/volume group showed shorter OS (median, 31.5 months vs. no reached, P=0.028) and DFS (median, 11.6 vs. 25.7 months, P=0.004) than those in the high group (Figure 3A,B). Univariate analysis revealed that multiple tumors, largest diameter, vascular invasion, visceral peritoneal perforation, lymph node metastasis, γ-GT, CEA, and circulating OPN were significantly correlated with both OS and DFS (Table 2).

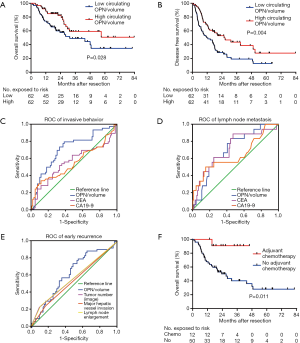

Figure 3 The clinical value of circulating OPN per tumor volume. (A) Overall survival curve for high (red, n=62) and low (blue, n =62) group of circulating OPN/volume. The survival rates at 1 and 3 years were 90.0% and 57.8% respectively, in the high group, and 74.0% and 49.3% respectively, in the low group (P=0.028); (B) the disease-free survival curve for high and low circulating OPN/volume group. The survival rates at 1 and 3 years were 68.9% and 41.1% respectively, in the high group; and 50.0% and 19.1% respectively, in the low group (P=0.004); (C) ROC curve for OPN/volume (AUC 0.719; 95% CI, 0.630–0.796), CEA (AUC 0.553; 95% CI, 0.461–0.643), and CA19-9 (AUC 0.561; 95% CI, 0.469–0.650) in predicting invasive behavior in 124 ICC patients; (D) ROC curve for OPN/volume (AUC 0.708; 95% CI, 0.619–0.786), CEA (AUC 0.640; 95% CI, 0.549–0.725), and CA19-9 (AUC 0.712; 95% CI, 0.624–0.790) in predicting lymph node metastasis; (E) ROC curve for OPN/volume (AUC 0.622; 95% CI, 0.530–0.707), major hepatic vessel invasion (AUC 0.540; 95% CI, 0.449–0.630), lymph node enlargement (AUC 0.569; 95% CI, 0.477–0.658), and multiple tumors (AUC 0.567; 95% CI, 0.476–0.656) as indicated in the image in predicting early recurrence; (F) overall survival curve for the use of adjuvant chemotherapy (red, n=12) or not (blue, n=50) in patients with a low level of circulating OPN/volume. OPN, osteopontin.

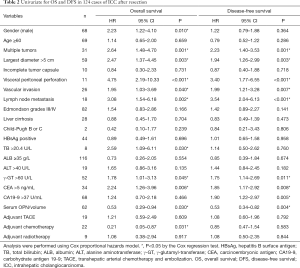

Table 2 Univariate for OS and DFS in 124 cases of ICC after resection
Full table

Predictive role of circulating OPN/volume on invasive behavior, lymph node metastasis and early recurrence

Circulating OPN/volume was associated with invasive and metastatic characteristics. Therefore, we explored its predictive value one step further. According to ROC curves, circulating OPN/volume was able to predict multiple tumors (AUC 0.710; 95% CI, 0.621–0.788, Figure S2A), vascular invasion (AUC 0.670; 95% CI, 0.580–0.751, Figure S2B), and visceral peritoneal perforation (AUC 0.737; 95% CI, 0.650–0.812, Figure S2C). Using circulating OPN/volume in predicting invasive behavior (AUC 0.719; 95% CI, 0.630–0.796) was better than CEA (P=0.015) and CA19-9 (P=0.027) (Figure 3C). Circulating OPN/volume was also able to predict lymph node metastasis (AUC 0.708; 95% CI, 0.619–0.786) and was no worse than CEA (P=0.508) or CA19-9 (P=0.960) (Figure 3D).

Figure S2 Predictive value of circulating OPN/volume. ROC analysis of circulating OPN/volume in predicting (A) multiple tumors (AUC 0.710; 95% CI, 0.621–0.788), (B) vascular invasion (AUC 0.670; 95% CI, 0.580–0.751), and (C) visceral peritoneal perforation (AUC 0.737; 95% CI, 0.650–0.812).

The calculation of OPN/volume relied on preoperative imaging, which included the information of tumor number, major hepatic vessel invasion, and lymph node enlargement. These factors are natural predictors of aggressive behavior. According to the ROC curves, OPN/volume was able to predict early recurrence after resection (AUC 0.622; 95% CI, 0.530–0.707, Figure 3E). However, major hepatic vessel invasion (AUC 0.540; 95% CI, 0.449–0.630), lymph node enlargement (AUC 0.569; 95% CI, 0.477–0.658) and multiple tumors (AUC 0.567; 95% CI, 0.476–0.656), as indicated in the image, failed to predict early recurrence (Figure 3E).

The correlation between circulating OPN/volume and efficacy of adjuvant therapy

The number of patients receiving adjuvant transhepatic arterial chemotherapy and embolization (TACE), chemotherapy, and radiotherapy in the serum cohort (n=124) were 19, 22, and 9 respectively. In this study, adjuvant chemotherapy referred to as fluoropyrimidine-base or gemcitabine-based chemotherapy. The distribution of adjuvant therapy was similar between the low and high group of OPN/volume (Table 1). According to the univariate analysis, adjuvant chemotherapy improved OS (HR 0.210; 95% CI, 0.05–0.87, P=0.031) but not DFS, while neither TACE nor radiotherapy had influence on survival (Table 2).

To explore whether OPN/volume helpful in developing a postoperative treatment plan, the subgroup analyses of OS were performed. For patients with a low level of OPN/volume, the preventive use of chemotherapeutic drugs after resection correlated with better OS than the absence of use (median time not reached vs. 27.1 months, P=0.011, Figure 3F). While for those with a high level of OPN/volume, chemotherapy did not influence OS (P=0.545). Both TACE and radiotherapy failed to show a survival benefit in the subgroup analyses.

Over expression of OPN inhibits cell proliferation and invasion in vitro

ICC cell lines (RBE, CCLPI, HCCC9810, and HuCCT1) expressed less SPP1-mRNA, and OPN, than a normal intrahepatic bile epithelium cell line, HIBEpic (Figure 4A).

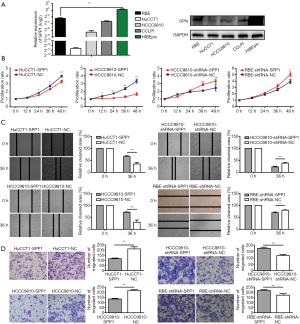

Figure 4 The biological function of OPN in vitro. (A) The expression level of SPP1-mRNA and OPN in cell lines of ICC (RBE, HuCCT1, HCCC9810, CCLPI) and intrahepatic bile duct (HIBEpic); (B) proliferation assay of constructed ICC cell lines. Proliferation accelerated in OPN up-regulated group and decelerated in OPN down-regulated group compared with their NC; (C) wound healing assay of OPN-regulated ICC cell lines. Up-regulation cell lines migrated faster than NC, while down-regulation cell lines migrated slower than the NC; (D) transwell invasion assay of gene-edited ICC cell lines. The number of the invaded cell was higher in OPN over-expressed cell lines and lower in OPN reduced cell line when compared with their NC respectively. (*, P<0.05, **, P<0.01). ICC, intrahepatic cholangiocarcinoma; OPN, osteopontin; NC, negative control.

Expression levels of OPN (encoded by SPP1) in stably transfected ICC cell lines (RBE-shRNA-SPP1, RBE-shRNA-NC; HCCC9810-shRNA-SPP1, HCCC9810-shRNA-NC; HCCC9810-SPP1, HCCC9810-NC; HuCCT1-NC, HuCCT1-SPP1) were confirmed by quantitative real-time PCR (qRT-PCR) and western blot (Figure S3).

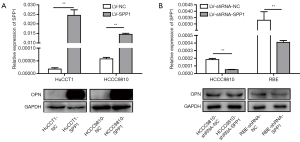

Figure S3 Confirmation of stably transfected ICC cell lines by qRT-PCR and western blot. (A) HCCC9810-SPP1 and HuCCT1-SPP1 expressed more SPP1-mRNA/OPN than their negative controls; (B) RBE-shRNA-SPP1 and HCCC9810-shRNA-SPP1 expressed less SPP1-mRNA/OPN than their negative controls. **, P<0.01. POPN, osteopontin; ICC, intrahepatic cholangiocarcinoma; qRT-PCR, quantitative real-time polymerase chain reaction.

Cell proliferation rates of HCCC9810-SPP1 and HuCCT1-SPP1 were significantly lower than HCCC9810-NC and HuCCT1-NC cells during 48-hour observations (P<0.01, Figure 4B). RBE-shRNA-SPP1 and HCCC 9810-shRNA-SPP1 had faster proliferation rates than their negative controls. According to wound-healing migration assays, microscopic examination at 36 h displayed a significant delay in the wound closure rate of HCCC9810-SPP1 and HuCCT1-SPP1 compared with their negative controls (Figure 4C); while the RBE-shRNA-SPP1’s and HCCC9810-shRNA-SPP1’s wound closure rates were more advanced than their control cells. Transwell invasion assay showed that the number of invaded cells was larger in the OPN down-regulated cells and smaller in the up-regulated cells (Figure 4D).

Metastasis associated genes influenced by OPN

Four gene-edited HCCC9810 cell lines (HCCC9810-shRNA-SPP1, HCCC9810-shRNA-NC, HCCC9810-SPP1, and HCCC9810-NC) were used to screen potential tumor metastasis associated genes caused by the expression of OPN (encoded by SPP1). The results of PCR array showed that the expression levels of 13 genes, which were ITGB3, MMP1, LAMB1, MMP10, CXCR4, RBL2, ETV4, MTSS1, IL1B, KISS1, CDH1, MCAM, and MMP9, decreased due to the up regulation of OPN [fold change (FC) <0.5, Figure 5A]. Furthermore, higher expression levels of MMP10, CXCR4, MMP3, and MMP1 were seen following the down regulation of OPN (FC >2, Figure 5B). In summary, MMP10, CXCR4, and MMP1 were potential metastasis-associated genes influenced by OPN.

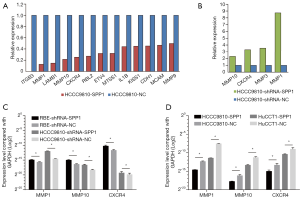

Figure 5 Metastasis associated genes regulated by OPN. (A) Thirteen genes down-regulated in HCCC9810-SPP1 compared with HCCC9810-NC; (B) four up-regulated genes caused by OPN knock-down in HCCC9810; (A,B) relative expression was normalized to the controlled cell lines which equal to one; (C) validation of MMP1, MMP10, and CXCR4 in OPN down-regulated ICC cell lines and their NCs; (D) validation of MMP1, MMP10, and CXCR4 in OPN up-regulated ICC cell lines and their NC. *, P<0.05. NC, negative control; OPN, osteopontin; ICC, intrahepatic cholangiocarcinoma.

To validate the results of the PCR array, qPCR was then taken repeatedly. RBE-shRNA-SPP1 and HCCC9810-shRNA-SPP1 had higher expression levels of MMP10, CXCR4, and MMP1 than negative controls (Figure 5C); while HCCC9810-SPP1 and HuCCT1-SPP1 expressed less MMP10, CXCR4, and MMP1 than NC cells (Figure 5D).

Discussion

The continuously increasing morbidity of ICC demands a deeper understanding of this lethal disease. Predicting the prognosis before the operation is of great value. It is beneficial not only to select suitable patients for resection but also to develop a comprehensive treatment plan as early as possible. In this study, a low level of circulating OPN/volume was found to be able to predict early recurrence, discriminate patients with shorter DFS and OS, and indicate the efficacy of adjuvant chemotherapy. The index could also predict aggressive characteristics including multiple tumors, vascular invasion, visceral peritoneal perforation, and lymph node metastasis. Tissue OPN per section showed similar results which were its low expression being associated with lymph node metastasis and shorter OS. Functionally, over-expression of OPN inhibits phenotypes facilitating ICC metastasis by negatively regulating MMP1, MMP10, and CXCR4.

Circulating OPN/volume was able to provide information for the treatment strategy among resectable patients. Patients with a high level of OPN/volume had a better prognosis; they could benefit well from resection alone. Meanwhile, for those with low OPN/volume, the prognosis of surgery alone is unsatisfactory, and adjuvant chemotherapy is needed to improve long-term survival. Both fluoropyrimidine-base and gemcitabine-based chemotherapy are frequently adopted. Chemotherapy has been proven effective for unresectable patients with advanced or metastatic ICC, while the benefit of adjuvant chemotherapy remains unclear (33). Some studies reported that adjuvant chemotherapy had a survival advantage for patients with positive lymph node or positive margin (9,34). However, there were also studies holding the opposing view that no survival benefit correlated with adjuvant chemotherapy (35). Our study revealed that adjuvant chemotherapy was beneficial for patients with a low level of OPN/volume, which could predict aggressive features and early recurrence, and not effective for those with a high level. Chemotherapy might kill or inhibit the micro tumor lesions which cannot be detected by conventional examination, thereby contributing to a survival benefit in patients with low OPN/volume.

Circulating OPN was positively correlated with tumor volume, while OPN in tissue was not. The finding confirmed the hypothesis raised by Loosen et al. (36) according to the evidence that both ICC parenchymal cell (24) and stromal cell (37) could express OPN. It also help explain the opposite prognostic value between serum OPN (36) and tissue OPN (22,23) to some extent. Considering that circulating OPN was mainly expressed by the tumor, circulating OPN might reflect the combined effect of tumor volume and OPN function. Therefore, we calculated OPN per tumor volume to unify circulating and local index, so as to look into the intrinsic effect of OPN. By adjusting the confounding factor of tumor volume, OPN/volume seemed a more reasonable new indicator. Standardization of serum biomarker by volume was also used in other tumors. Compared with using AFP alone, AFP/volume seemed a better prognostic indicator for HCC patients (28,38). In well or intermediately differentiated prostate cancer, PSA/volume is the strongest predictor of tumor undergrading (39). In this study, a low level circulating OPN/volume was an indicator of metastatic behavior and poor survival, which coincided with the findings from local tissue. Two other studies by Terashi et al. (22) (n=73) and Iguchi et al. (23) (n=61) showed similar results in that decreased expression of OPN was associated with shorter survival time.

ICC cells expressing higher levels of OPN are more likely to resemble normal bile duct epithelial and have a lower degree of the malignant phenotype. The role of OPN in ICC still remains controversial. Although there were reports regarding OPN as a risk factor (24,36,37), our data indicated that OPN might function as a protective prognostic factor (22,23). The protective effect of OPN in liver pathogenesis has been reported. Plasma OPN levels were significantly elevated during acute liver injury, while very high levels of OPN were associated with good outcomes (40). In an ischemia-reperfusion mouse model, up regulation of OPN partially protected from hepatic injury and inflammation (41). In another mouse model of liver carcinogenesis induced by DEN, intracellular OPN (iOPN) negatively regulated toll-like receptor mediated immune responses to reduce pro-inflammatory cytokines, thus impeding hepatocarcinogenesis (42). Moreover, ICC in the OPN high expression group was better differentiated than that in the medium and low expression group. Another study also found that ICC expressed low levels of OPN irrespective of the tumor differentiation grade (43).

This study showed that MMP10, CXCR4, and MMP1 were potential metastasis associated genes influenced by OPN. OPN might inhibit migration and invasion of ICC cell lines by down-regulating MMP1, MMP10 and CXCR4. CXCR4 is a conserved chemokine receptor specific for SDF1 (also known as CXCL12) with strong chemotactic activity for lymphocytes (44). Lymph node metastasis associated with CXCR4/SDF1 has been found in breast cancer (45) and head and neck squamous cell carcinoma (46). Binding of SDF1 to CXCR4 induces invasion by activating downstream pathways like PI3K (47), MAPK (48), and ERK1/2 (49). SDF1 is able to enhance the expression and the function of MMPs (50). MMP1 promotes lymph node metastasis in esophageal squamous cell carcinoma (ESCC) (51), and peritoneal dissemination in ovarian cancer (52). MMP10 was found through a data assessment to be correlated with metastatic behavior in many human cancer types (53). MMP1 (54) and MMP10 (55) also promote the formation of the pre-metastatic niche. The crosstalk between MMP10 and CXCR4/SDF1 axis stimulates cancer cell proliferation, angiogenesis, and metastasis (56).

There are some limitations to this study. First, we cannot deny the existence of biases caused by the retrospective study. The clinical value of circulating OPN/volume is in need of further validation in a prospective cohort, optimally in a multicenter study. Second, patients enrolled in this study were those who have undergone curative resection; thus, the findings may not be extended to patients with unresectable or recurrent lesions. Third, the biological function of OPN was preliminarily explored, and its mechanism still needs further study.

Conclusions

In summary, circulating OPN/volume was a protective prognostic factor for resectable ICC. Its low level indicated early recurrence, aggressive characteristics and poor survival in ICC patients before operation. OPN/volume also had a potential role in developing strategy of adjuvant therapy after curative resection. Functionally, OPN might inhibit migration and invasion of ICC cell lines by down-regulating MMP1, MMP10, and CXCR4.

Acknowledgments

Funding: This work was jointly supported by the grants from the National Natural Science Foundation of China (81372650 to Z Wang, 81502028 to LX Yang and 81301821 to L Yu); Foundation of Shanghai Science and Technology Commission (grant number 13ZR1406900 to Z Wang); and The National Science and Technology Major Project (grant number 2018ZX10723204-004 to Z Wang).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by the ethics committee at Zhongshan Hospital (No. B2018-018).
